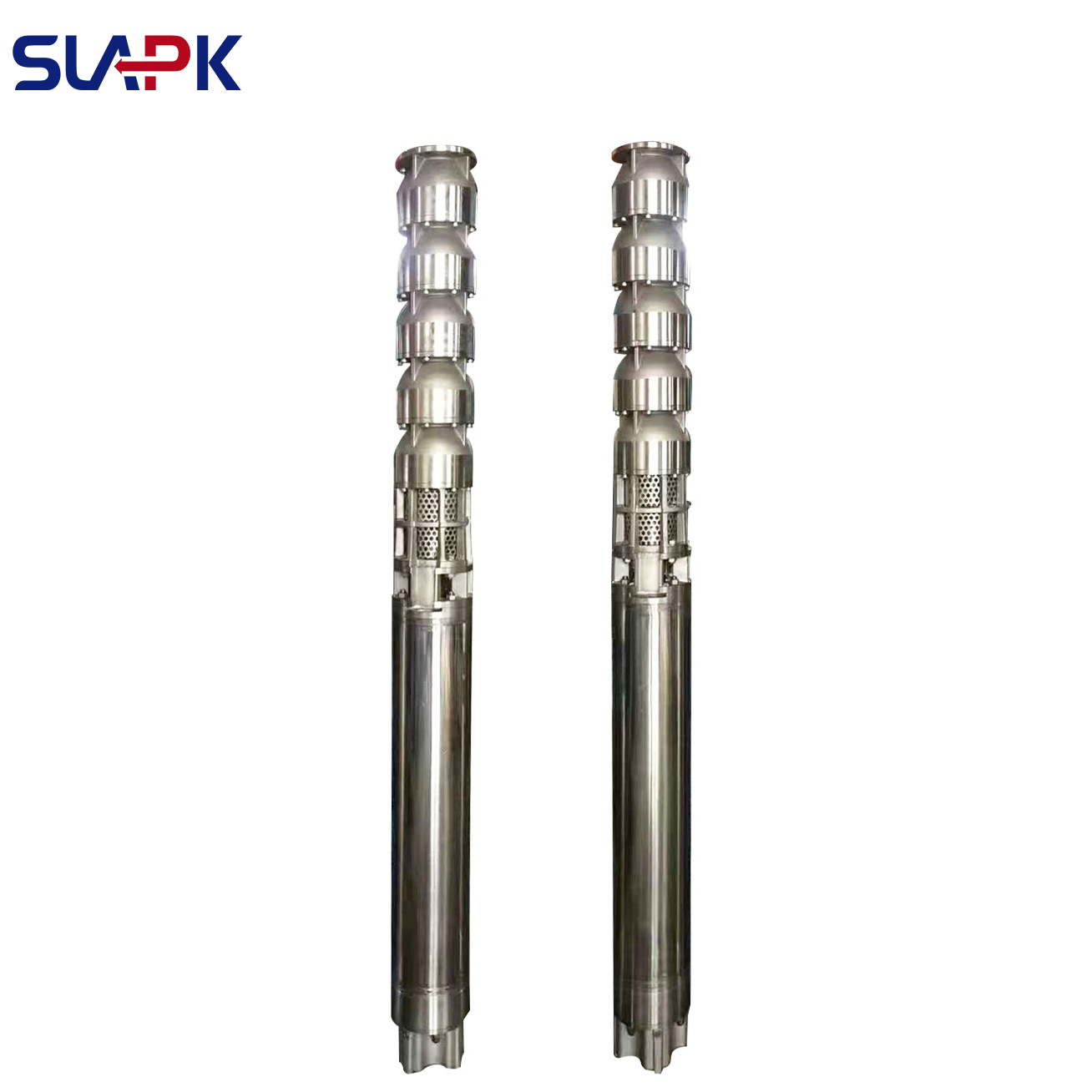

180kW Stainless Steel Submersible Water Pump | 400m³/h Borehole Pump for Seawater & Deep Well Applications
Key Product Advantages
High Power & Reliable Performance
This 180kW high-capacity submersible pump delivers a rated flow rate of 400 m³/h, ideal for demanding applications such as deep well water extraction, mining dewatering, seawater intake, and large-scale irrigation. Engineered for continuous, stable operation with industry-leading efficiency.
Premium 316L Stainless Steel Construction
Critical components—including the pump body, impeller, and shaft—are made from high-grade 316L stainless steel, offering exceptional resistance to chloride and saltwater corrosion. Specifically designed for seawater, brackish water, saline groundwater, and mildly acidic/alkaline environments, ensuring a service life of over 10 years and significantly reducing maintenance costs.
Optimized for Deep Well & Borehole Use
As a professional borehole submersible pump, this model features a modular multi-stage impeller design. It can be customized in stage count to match your well diameterand required head, ensuring perfect fit and reliable performance in deep aquifers up to 300+ meters.
IP68 Protection & Submersible Safety
Rated IP68, this pump operates reliably at depths exceeding 200 meters. The motor includes built-in thermal overload protection, automatically shutting down in case of dry running or overloading—ensuring long-term safety and durability.
OEM/ODM Supported | Global Project Experience
With nearly four decades of manufacturing expertise, our pumps are trusted in Middle East, Southeast Asia, Africa, South America, and beyond. We support full customization for voltage (380V/415V/660V), frequency (50Hz/60Hz), materials, flow, and head, meeting international standards and project-specific requirements.
ypical Applications
Seawater Intake & Desalination Plants
Deep Well & Mine Dewatering
Large-Scale Agricultural Irrigation
Industrial Cooling Water Circulation
Municipal Water Supply & Booster Stations
Oil & Gas Field Water Injection
Emergency Flood Control & Drainage Systems
|
Diameter |
Model |
Power |
Flow range |
Head range |
|
|
Inch (") |
QJ type |
kw |
hp |
m3/h |
m |
|
10" |
250QJ50-20/1 |
5.5 |
7 |
46-54 |
17-23 |
|
10" |
250QJ50-60/3 |
15 |
20 |
46-54 |
51-69 |
|
10" |
250QJ50-120/6 |
30 |
40 |
46-54 |
102-138 |
|
10" |
250QJ50-200/10 |
45 |
60 |
46-54 |
170-230 |
|
10" |
250QJ50-240/12 |
55 |
75 |
46-54 |
204-276 |
|
10" |
250QJ50-300/15 |
63 |
85 |
46-54 |
265-335 |
|
10" |
250QJ50-340/17 |
75 |
100 |
46-54 |
315-375 |
|
10" |
250QJ50-380/19 |
90 |
120 |
46-54 |
350-410 |
|
10" |
250QJ50-400/20 |
100 |
135 |
46-54 |
365-430 |
|
10" |
250QJ63-40/2 |
11 |
15 |
58-68 |
34-46 |
|
10" |
250QJ63-60/3 |
18.5 |
25 |
58-68 |
51-69 |
|
10" |
250QJ63-120/6 |
37 |
50 |
58-68 |
100-138 |
|
10" |
250QJ63-160/8 |
45 |
60 |
58-68 |
130-184 |
|
10" |
250QJ63-260/13 |
75 |
100 |
58-68 |
220-299 |
|
10" |
250QJ63-300/15 |
90 |
120 |
58-68 |
205-343 |
|
10" |
250QJ80-20/1 |
7.5 |
10 |
74-86 |
17-23 |
|
10" |
250QJ80-140/7 |
55 |
75 |
74-86 |
118-163 |
|
10" |
250QJ80-200/10 |
75 |
100 |
74-86 |
170-230 |
|
10" |
250QJ80-240/12 |
90 |
120 |
74-86 |
204-276 |
|
10" |
250QJ80-280/14 |
110 |
150 |
74-86 |
235-325 |
|
10" |
250QJ100-36/2 |
15 |
20 |
80-120 |
32-42 |
|
10" |
250QJ100-72/4 |
30 |
40 |
80-120 |
64-84 |
|
10" |
250QJ100-144/8 |
63 |
85 |
80-120 |
120-168 |
|
10" |
250QJ100-216/12 |
100 |
135 |
80-120 |
190-252 |
|
10" |
250QJ125-16/1 |
9.2 |
13 |
116-134 |
13-19 |
|
10" |
250QJ125-128/8 |
75 |
100 |
116-134 |
109-147 |
|
10" |
250QJ125-192/12 |
110 |
150 |
116-134 |
163-220 |
|
10" |
250QJ140-180/12 |
125 |
170 |
130-145 |
156-205 |
|
10" |
250QJ160-15/1 |
13 |
18 |
148-172 |
12-18 |
|
10" |
250QJ160-90/6 |
63 |
85 |
148-172 |
77-103 |
|
10" |
250QJ160-105/7 |
75 |
100 |
148-172 |
90-120 |
|
10" |
250QJ160-120/8 |
90 |
120 |
148-172 |
102-138 |
|
10" |
250QJ160-135/9 |
100 |
135 |
148-172 |
115-155 |
|
10" |
250QJ160-150/10 |
110 |
150 |
186-214 |
128-170 |
Get Your Custom Quote & Technical Proposal Today!
Contact Us Now — Send us your application details, required flow/head, water quality, and well depth. Our engineering team will respond within 24 hours with a precise pump selection and competitive pricing.
Customization Available | Samples Accepted | OEM/ODM Projects Welcome
Worldwide Shipping | Export-Ready Packaging | Full Documentation Support
Inquire now and receive a FREE technical assessment + long-term partnership discounts!
